Capabilities
Certified in-house metal fabrication supporting commercial, industrial, and engineered projects - from custom assemblies to repeat production.
Our fabrication processes are supported by recognized industry certifications and quality standards that ensure consistency and compliance across every project.
AISC Certified Fabricator – Structural steel fabrication, quality management, and inspection procedures.
AWS Certified Welding Fabricator (CWF) – Welding procedures, personnel qualifications, and quality controls.
NOMMA Member – Recognized standards in ornamental and miscellaneous metals fabrication.
ICWF Certified Welding Fabricator – Documented welding procedures, inspection practices, and quality assurance programs.
Process Capacity Quick Specs
General Scope
Weldments; repetitive parts under 10,000 lbs; pipe bending in multiple planes; circumferential and longitudinal finishing of stainless steel and aluminum round shapes under 4” diameter.
Cutting & Material Processing
Plasma Cutting: Capacity up to 1” (water table 20’ × 6’)
Shearing (Longitudinal Cuts):
• 10’ length up to 1/4” thickness
• 8’ length up to 3/16” thicknessSaw Cutting:
• Up to 24” × 36”
• Up to 10” × 14”
• Up to 12” × 10”
• CNC, mitered, and diagonal cutting available
• Angle cutting and coping capabilities
Punching & Hole Making
Punching: Presses up to 150 tons
Multiple punch sizes and configurations available for repetitive and precision work
Forming & Bending
Brake Presses:
• Multiple brake presses with capacities up to 10’ bed length
• Material thickness up to 1/4” plateRolling: Pyramid roller up to 2‑1/2” pipe
Bending & Forming: Capable of coping, angled, and formed components as required by design
Drilling & Machining
Automated Drilling: CNC drilling for round and square tubing up to 3”, flat material up to 3/8”, and standard profile shapes
Finishing Capabilities
Stainless Steel Polishing: 1/2” – 4” cylindrical shapes
• Parts can be finished after forming
• Circumferential and longitudinal finishing
The following specifications outline general fabrication capabilities and typical processing limits.
Have questions about capacity or fit?
Call us at (574) 264-2166
Automated Drilling & CNC Processing
Evans Metal Products utilizes automated drilling and CNC processing to support accurate, repeatable hole processing for structural steel and fabricated components. The HEBO RBV 12 SV automatic drilling system supports precise layout, alignment, and material preparation prior to welding and assembly, improving fit‑up accuracy and consistency across fabricated assemblies.
Precision Plasma Cutting
Evans Metal Products provides high‑definition precision plasma cutting for plates, channels, angles, and tube materials, supporting fabrication across carbon steel, stainless steel, aluminum, and specialty materials. This capability delivers accurate, repeatable cuts and efficient part preparation, supporting downstream welding, assembly, and fit‑up with minimal cleanup prior to fabrication and finishing.

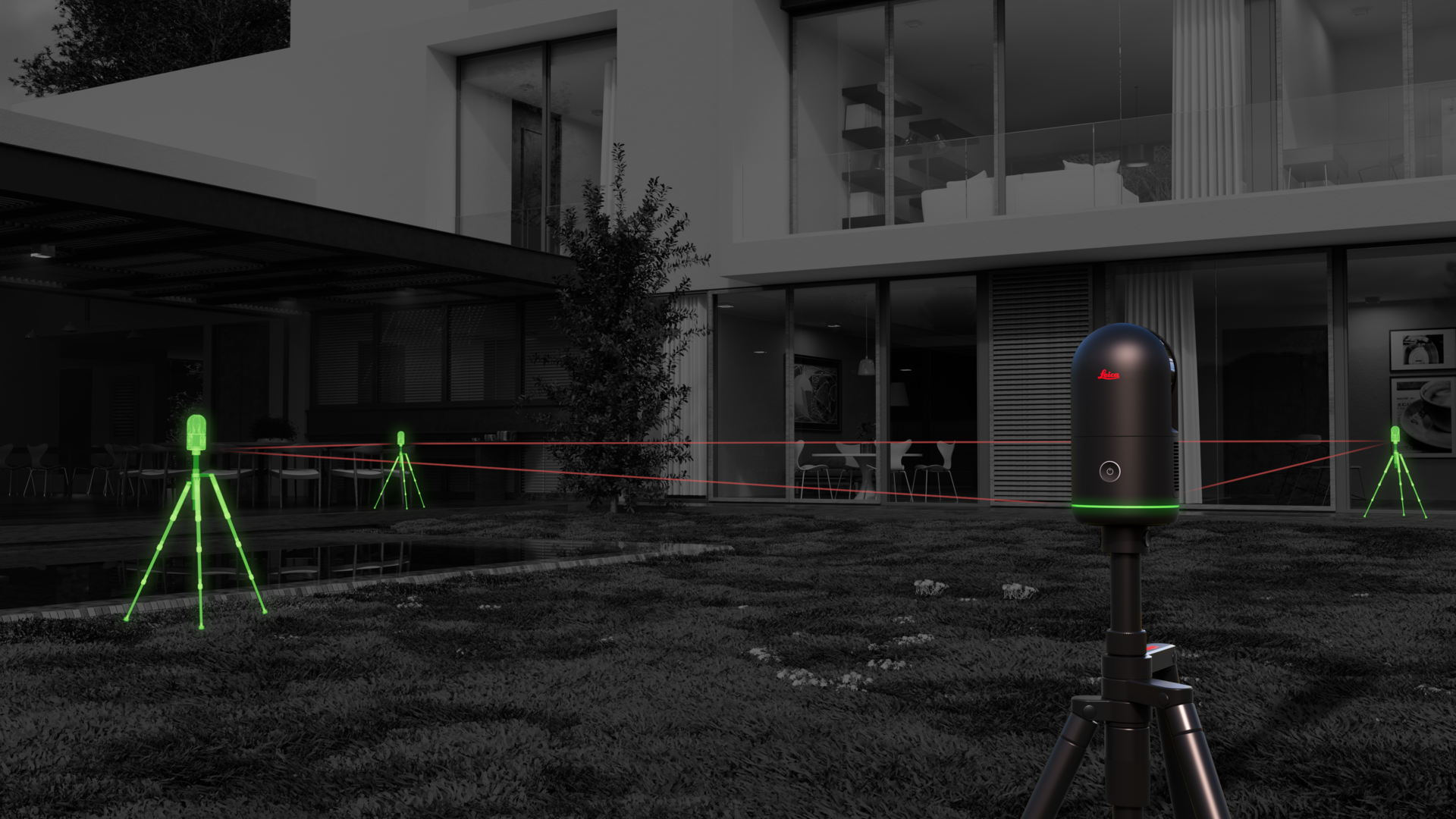

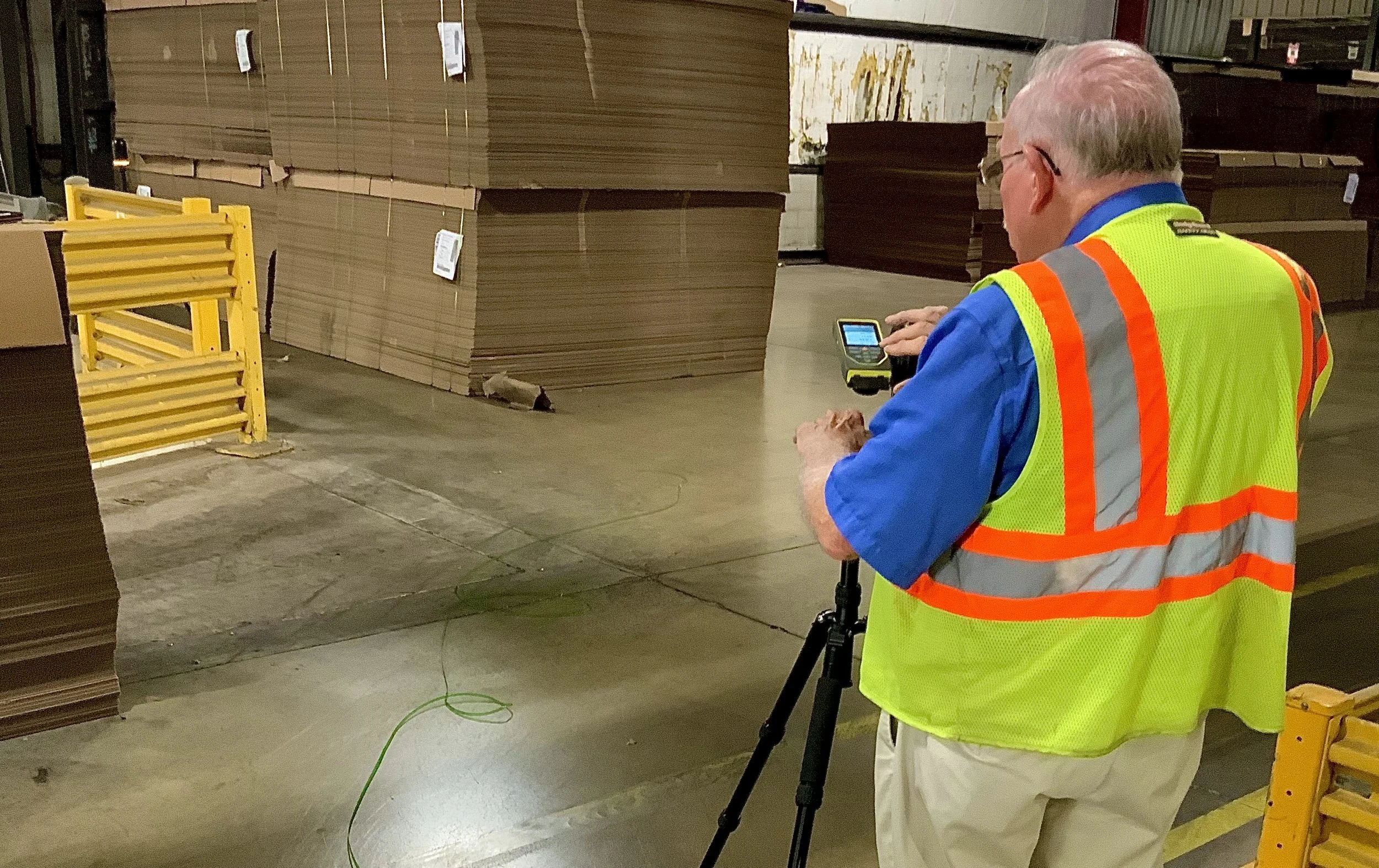

3D Laser Scanning & Field Verification
Evans Metal Products provides on‑site 3D laser scanning and field verification using Trimble BLK360 technology to support accurate as‑built measurements, scan‑to‑model coordination, and fabrication accuracy. This capability is used to verify existing conditions, coordinate complex geometry, and reduce errors caused by field discrepancies, supporting quality control, construction verification, and reliable fit‑up prior to fabrication and installation.

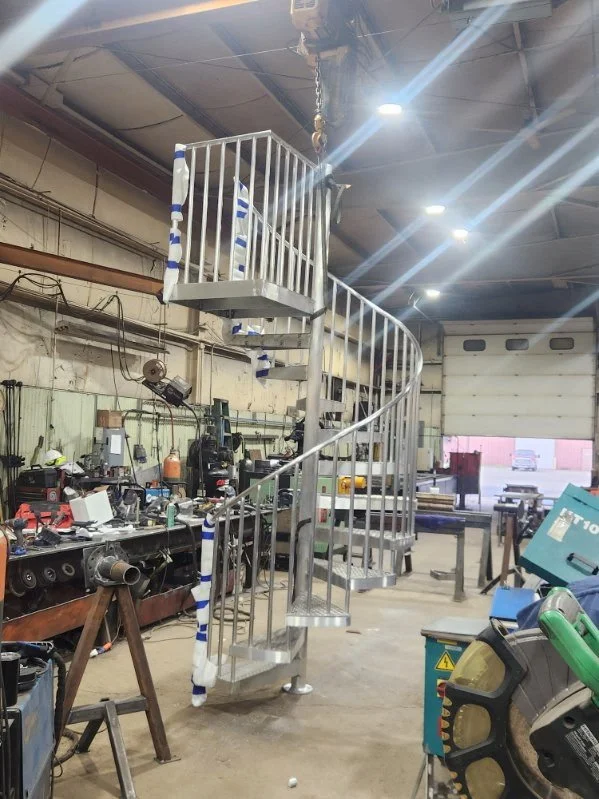

Stairs & Ladders
Evans Metal Products fabricates custom stair and ladder systems supporting vertical circulation, equipment access, and complex architectural requirements across industrial, commercial, and institutional projects. Fabrication includes interior and exterior metal stair systems, industrial access stairs, platforms, equipment stair systems, alternating step ladders, and fixed ladders, with assemblies coordinated to structural steel framing and field conditions.
Helical and curved stair fabrication is a core capability, supporting projects where geometry, tolerance control, and visual continuity are critical to both function and design. Work includes segmented and continuous radius construction, requiring advanced layout, forming, and fabrication coordination to achieve consistent fit‑up and finished appearance.
Railing Systems
Evans Metal Products fabricates architectural and industrial railing systems for fall protection, pedestrian control, and edge definition across commercial, institutional, and public environments. Railing fabrication supports both interior and exterior guardrail and handrail systems, including straight and curved railing runs, tube and pipe bending, decorative and architectural assemblies, and laser‑cut steel infill panels. Fabrication also includes coordinated steel coping and cap elements integrated with railings, walls, and parapet conditions, with systems coordinated to finishes and materials to support durable edge conditions and consistent visual continuity across completed spaces.

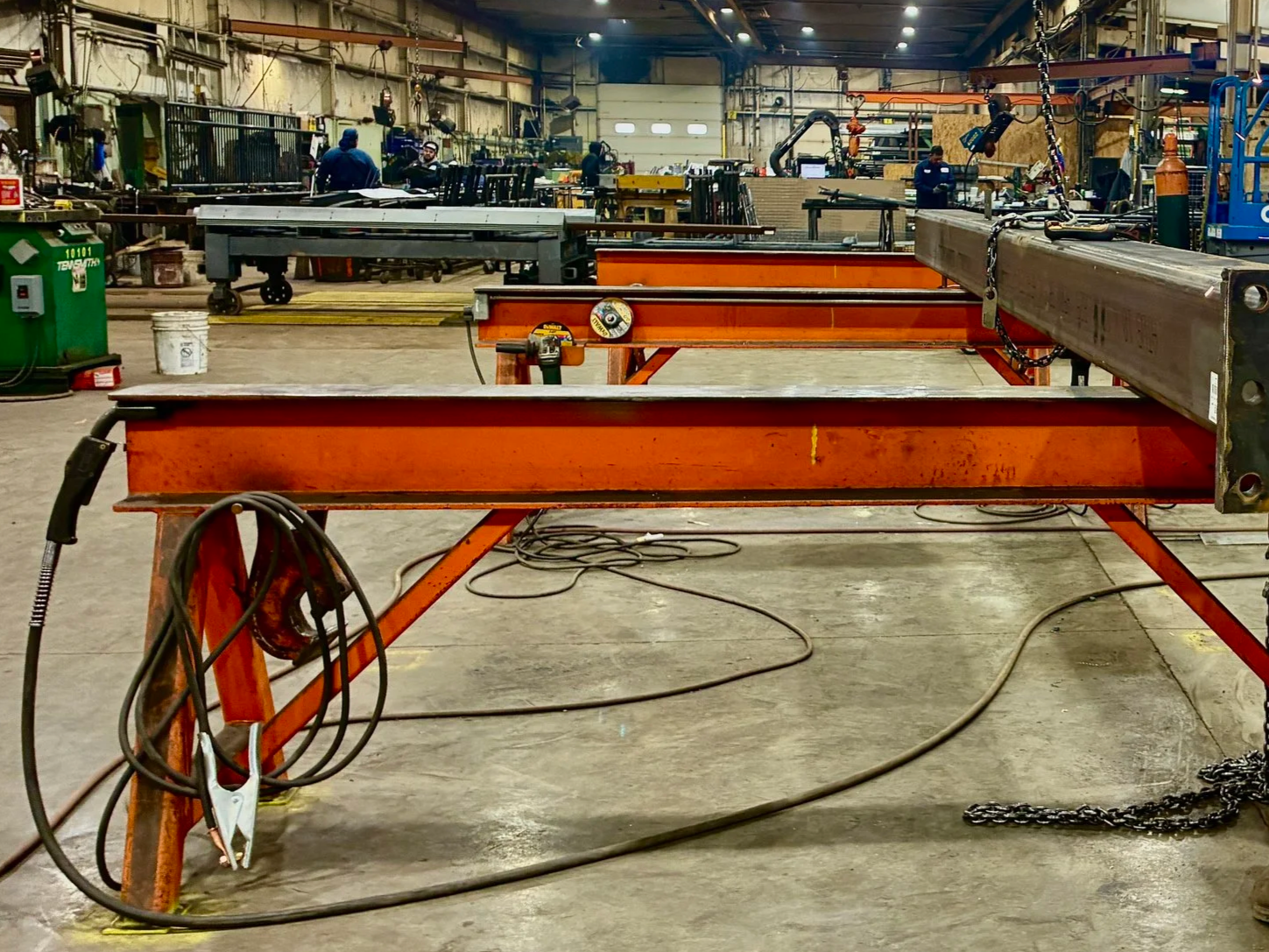

Welding, Assembly & Finishing
In‑house welding, assembly, and fit‑up support both structural and non‑structural fabrication, with coordinated processes maintaining dimensional accuracy, surface preparation, and finish readiness across carbon steel, stainless steel, and aluminum components. Where specified, finishing coordination can include polishing, stainless steel passivation, and post‑forming refinement prior to coating, delivery, or installation.
IN‑HOUSE TOOLING & FABRICATION SUPPORT SYSTEMS

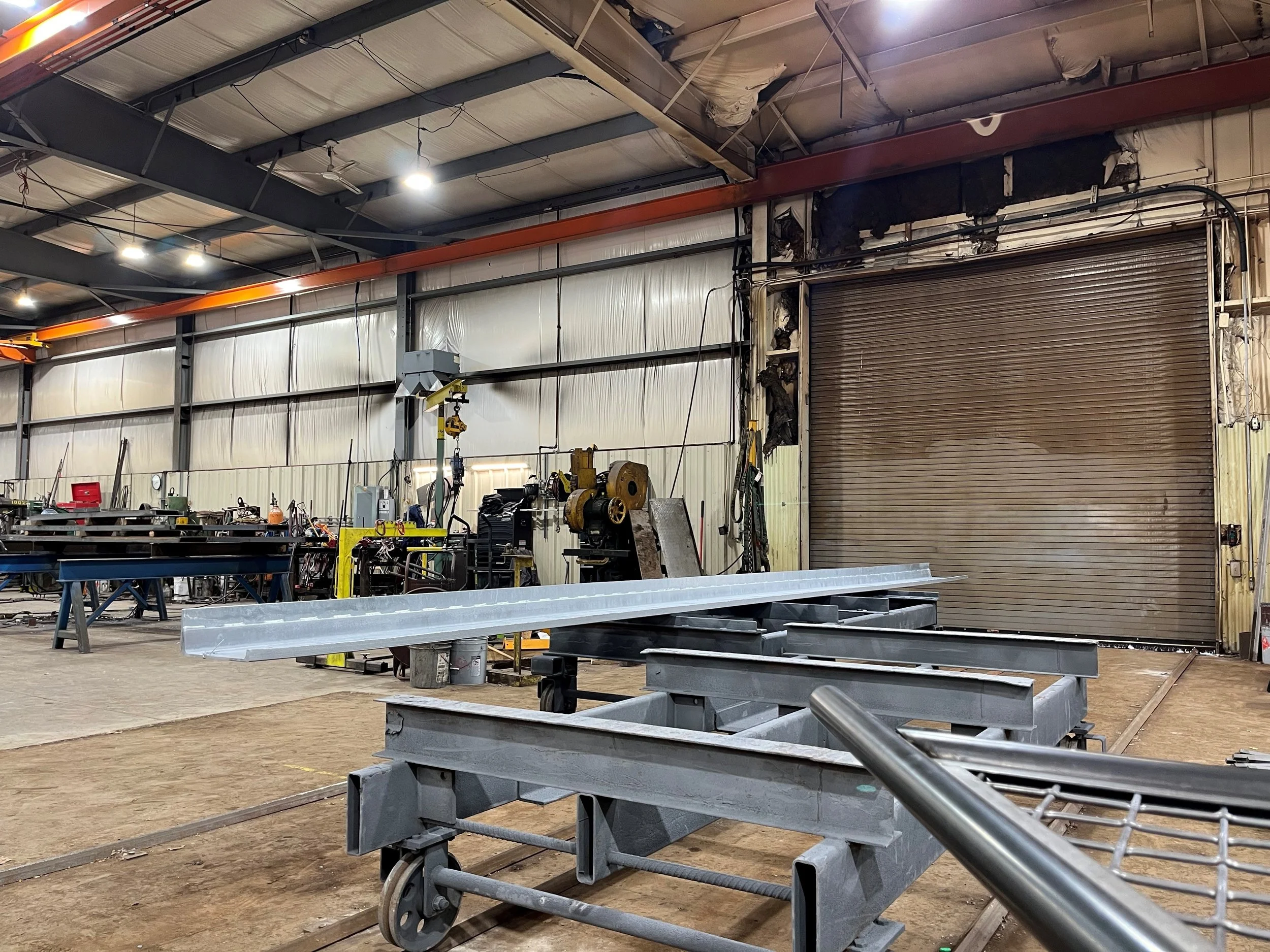

Evans Metal Products designs and fabricates custom in‑house tooling and support equipment to accommodate complex fabrication requirements, large assemblies, and non‑standard geometry. These shop‑built systems support controlled handling, staging, and positioning of fabricated components throughout the fabrication process.
In‑house support equipment, including material handling carts, custom fixtures, and beam‑line support systems, enables the fabrication of large structural members, curved components, and multi‑piece assemblies that require precise alignment and repeatable accuracy prior to delivery.
Manufacturing Industrial Standardized Parts
Manufacturing capabilities support repetitive parts, assemblies, and production‑based fabrication where consistency across runs is required. Evans Metal Products supports projects requiring controlled production processes and repeatable output, maintaining consistent quality standards across batches and production cycles.
Welding Paddles for Hydro Aluminum
Sawhorses, Skids & Engineered Components
Evans Metal Products fabricates engineered and inspected heavy-duty steel sawhorses, skids, and specialty components for industrial and construction use. These items are built for durability, load capacity, and repeat use where standard off-the-shelf solutions are not sufficient.

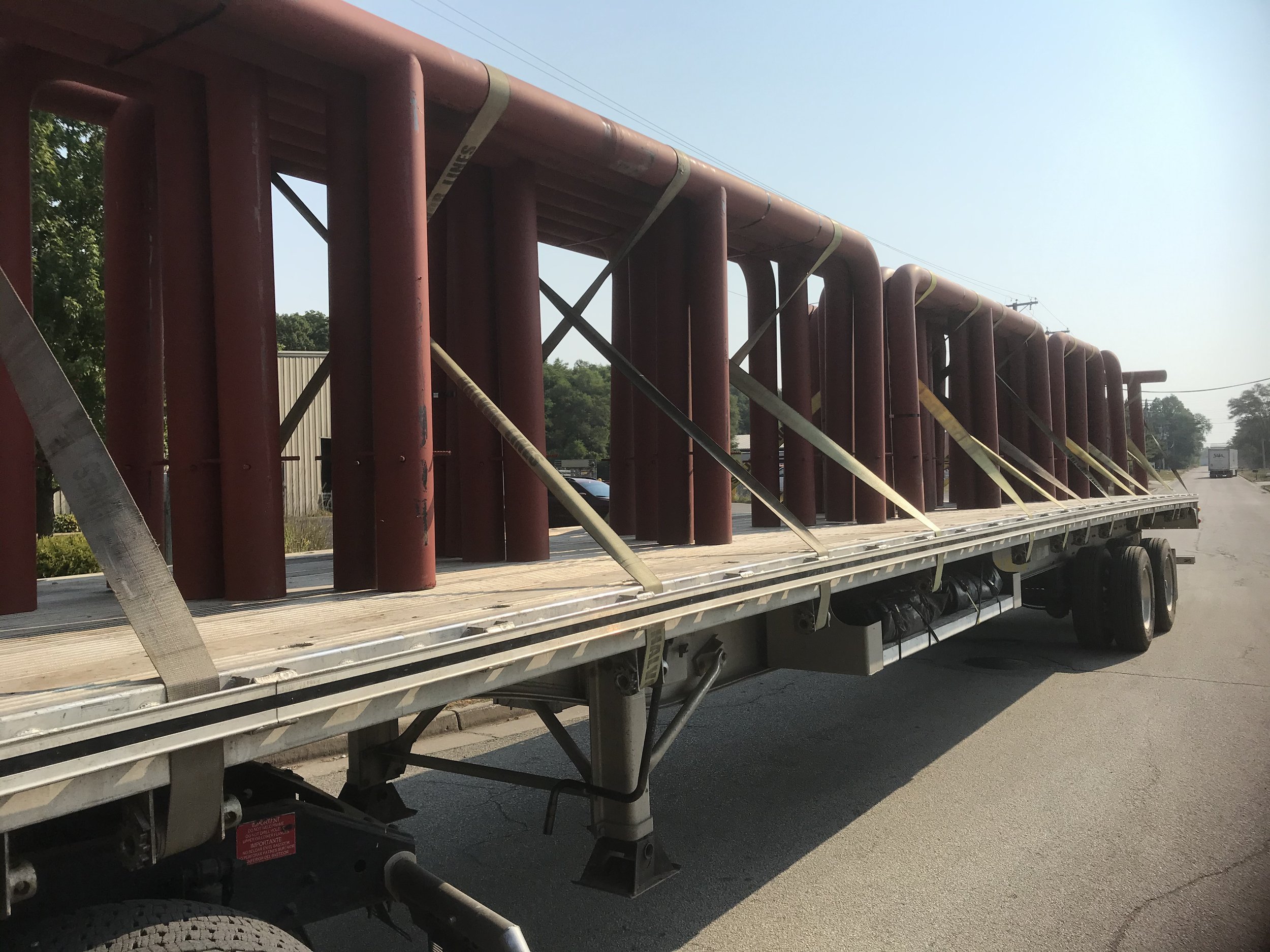

Delivery and Installation
Evans Metal Products provides coordination for delivery and installation support as part of our fabrication services. Our team works with project stakeholders to ensure fabricated components are delivered and installed in alignment with project requirements and schedules.
