Selecting the right Mesh Panels for Railing or stand alone panels


Choosing the right mesh panel involves more than appearance. This guide explains wire diameter, weave styles, opening sizes, framing options, panel orientation, and mounting considerations to help you select the best mesh solution for your project.

Several times we have been asked to supply mesh panels for projects to achieve an open look and also a woven appearance. We achieve their desire but have a few cautions having to do with 1.) wire diameter, 2.) the wire weave, 3.) opening size, 4.) the size of the “U” channel that will enclose the mesh panels, 5.) the direction of the mesh, and 6.) mounting.

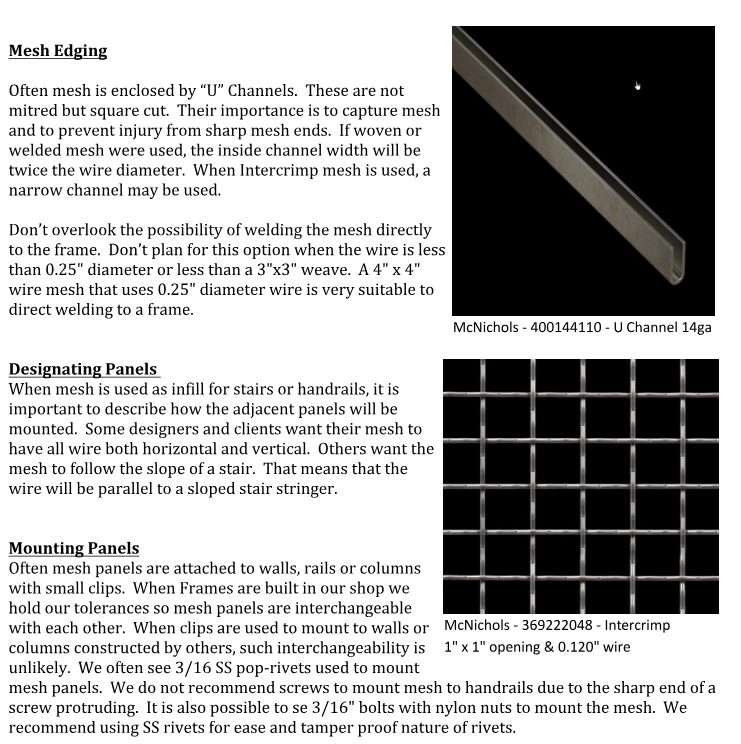

Technical guide showing U-channel edging and welded wire mesh with one-inch openings, including panel and mounting specifications.

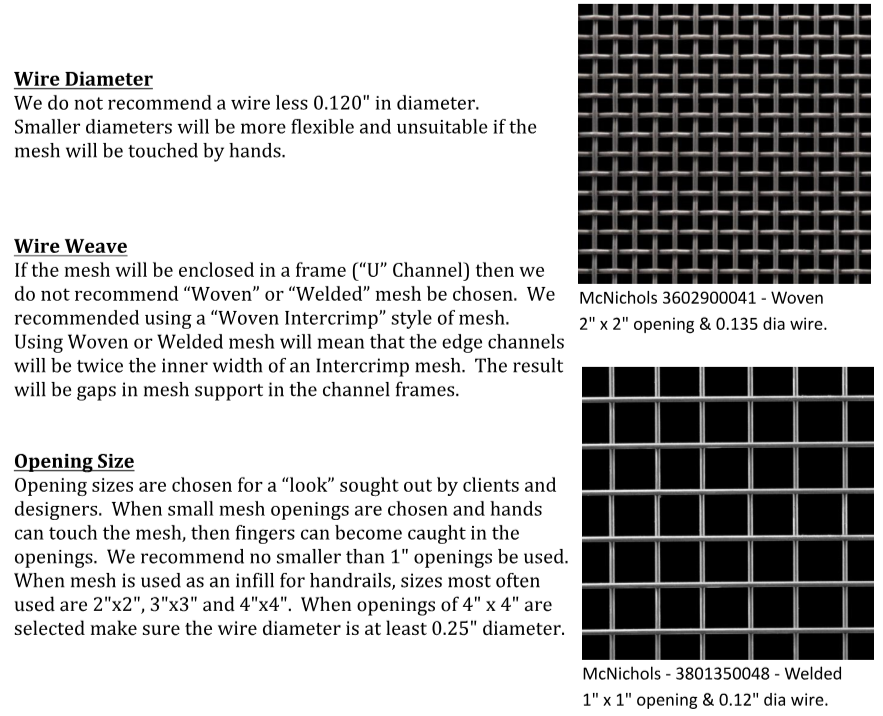

Wire-mesh guide comparing woven and welded mesh, including wire diameter, weave pattern, and opening-size recommendations.

Have further questions about Selecting the right mesh panels?
